A drunkard stands at some integer on a number line. At each step he moves
either left or right to the adjacent number. He chooses the left
or right with equal probability.
Let $S_n$ be his position after $n$ steps,
for $n=0,...,10.$ We may draw a graph of $S_n$
versus $n$ using a zigzag line like the one shown below.

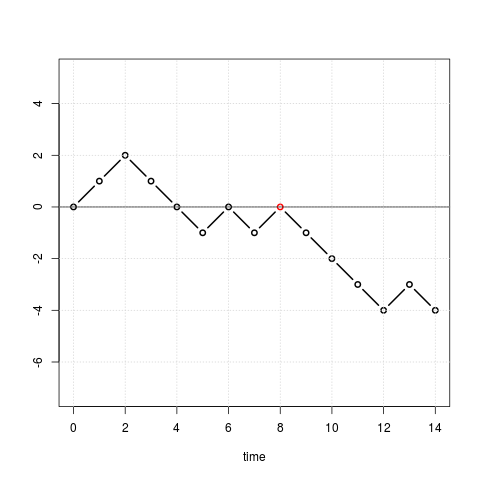

Random walk
The asp=1 in the plot command
keeps the plot area aspect ratio equal to 1, i.e., a
square. The abline command draws a horizontal line
through 0.
x = sample(c(-1,1), 100, rep=T)
plot(cumsum(x),ylab='random walk', xlab='time', ty='l',asp=1)
abline(h=0)
Share market values show such behaviour.
Clearly, there are $2^{10}$ such possible paths. Since the
man is a drunkard we assume that all these are equally likely.
EXAMPLE 1:
Find the probability that he ends up at his starting position
after 10 steps.
SOLUTION:
It is the
total number of paths from $(0,0)$ to $(10,0)$ divided
by $2^{10}.$ Now, each such path must have the same number
of up's and down's. So the number is $\binom{10}{5}.$
■
::
EXERCISE 1: (Easy) Find the probability that the drunkard ends up at any given
$k\in{\mathbb Z}$ in exactly $n$ steps.
Video for this section
Any path from time $m$ to $n$ (with $m<n$)
will be considered as a function $\pi:\{m,...,n\}\rightarrow{\mathbb Z}.$
If, for example,
the path passes through some $(3,4)$ then we
have $\pi(3)=4.$
The set of all paths from a point $\alpha$ to a
point $\beta$ will be denoted by $PATH(\alpha,\beta).$
For example, if $\alpha = (0,0)$ and $\beta = (5,2)$,
then we have
EXAMPLE 2:
Find $|PATH\big( (2,3), (15,2) \big)|.$
SOLUTION:
Any path from $PATH\big( (2,3), (15,2) \big)$ may be shifted 2
units to the left and 3 units downwards to arrive at a path
in $PATH\big( (0,0), (13,-1) \big).$
The red path is shifted to the blue path.
This shift establishes a
bijection between $PATH\big( (0,0), (13,-1) \big)$
and $PATH\big( (2,3), (15,2) \big).$ So they have the same
size. Hence the answer is $N_{13,-1} = \binom{13}{6}.$
■
Similar argument leads to the following theorem.
EXAMPLE 3:
Consider all paths of length $2n$ starting from $(0,0).$
What is the probability that the path returns
to $0$ at time $2n$?
SOLUTION:
There are $2^{2n}$ paths, all equally likely. So $|\Omega| =
2^{2n}.$
Let $A$ be the event that the path ends at $(2n,0).$
Then $|A| = N_{2n,0}.$
So $P(A) = \frac{|A|}{|\Omega|} =
\frac{N_{2n,0}}{2^{2n}}.
$
■
::
EXERCISE 2: (Easy)
Find the numerical value of the probability you found in the
above example for $n=5.$ Check it by running the following
code:
event = c()
for(k in 1:5000) {
x = sample(c(-1,1), 10, rep=T)
event[k] = (sum(x)==0)
}
mean(event)
Since we are assuming that all paths in the sample space are
equally likely, computing probabilities of different events
amounts to finding the size of the events (i.e., counting the
number of paths in the event). So the exercises are presented in
terms of sizes of events rather than in terms of their probabilities.
Video for this section
Our aim here is to find probabilities of various sets of paths, or, equivalently to find the sizes of
of these sets. We can often express them easily using the $N_{n,r}$ notation.
This is thanks to the reflection principle, which we discuss now.
Draw the horizontal line at height $5,$ say. Consider two
points $\alpha=(2,6)$ and $\beta=(6,4)$, say, that are on the same
side of the line.
We want to count the number of paths from $\alpha$ to $\beta$ that
meets (i.e., touches or cuts) $L.$ One such path is shown in the diagram.
To find this number we employ a trick.
Let
$\alpha'$ be the reflection
of $\alpha$ along $L.$ Thus here, $\alpha' = (2,4).$
Then the required number
the same as $|PATH(\alpha',\beta)|.$
Proof:
Keep an eye on this picture while reading the proof:
Reflection principle
Let $S$ be the set of all paths from $\alpha $
to $\beta $ that meets $L.$
Shall show that $|S|=|PATH(\alpha',\beta)|.$
Enough to show that there is a bijection $f:S\rightarrow PATH(\alpha',\beta).$
Step 1: Constructing $f$:
Take any path $p\in S.$ Let $\gamma$ be the first point where the
path meets $L.$
Reflect around $L$ the part of the path
between $\alpha$ and $\gamma.$ This will give a path
from $\alpha'$ to $\beta.$ Define $f(p)$ to be
this path.
We shall now show that it is a bijection. The following diagram is an example showing the effect of this map:
The purple part is reflected
Step 2: Showing onto:
Take any $q\in PATH(\alpha',\beta).$ Since $\alpha'$ and $\beta$ are
on opposite sides of $L,$ so the path must
intersect $L$ some time or other.
Let $\gamma$ be the
first such point. Reflect the part of $q$ between $\alpha'$ and $\gamma $ to get a path $p\in S.$
Clearly $f(p)=q.$
Step 3: Showing one-one:
Let $p_1,p_2\in S$ be such that $f(p_1)=f(p_2)=q,$
say. Shall
show that $p_1=p_2.$
Pick the first point $\gamma$ where $q$ meets $L.$
Then by property of $f$, the part of $q$
from $\gamma$ to $\beta$ is the same as the part
of $p_1$ from $\gamma$ to $\beta.$
Similarly, the part of $q$
from $\gamma$ to $\beta$ is the same as the part
of $p_2$ from $\gamma$ to $\beta.$
So $p_1$ matches $p_2$ between $\gamma $ and $\beta.$
Also, the part of $p_1$ from $\alpha$ to $\gamma$
is the reflection of the part of $q$ from $\alpha'$ to $\gamma.$
Similarly, the part of $p_2$ from $\alpha$ to $\gamma$
is the reflection of the part of $q$ from $\alpha'$ to $\gamma.$
So $p_1$ matches $p_2$ between $\alpha$ and $\gamma.$
Hence $p_1=p_2,$ as required.
[QED]
EXAMPLE 4:
Again take a horizontal line $L$ (at height $h$) and two
points $A:(a,p)$ and $B:(b,q)$ both above (not on)
$L.$ Here $a<b.$ How many paths are there
from $A$ to $B$ that does not meet $L?$
SOLUTION:
First count all paths from $A$ to $B.$ From it subtract
the number of paths that meet $L.$
Total number of paths from $A$ to $B$
is $N_{b-a,q-p}.$
The number of paths from $A$ to $B$ that
meet $L$ may be found using the reflection principle.
The reflection of $A$ along $L$ is at $A':(a,2h-p).$
So the required number is $N_{b-a,q-2h+p}.$
Hence the final answer is $N_{b-a,q-p}-N_{b-a,q-2h+p}.$
■
EXAMPLE 5:
How many paths are there from $(0,0)$ to $(10,4)$ that
are strictly positive at all times $>0?$
SOLUTION:
This is very similar to the exercise above (with $L$ given
by the horizontal line at height $0$), except that we start
on the line itself.
However, it is obvious that our path must go to $(1,1)$
after the first step. So the last exercise may be applied
between $A:(1,1)$ and $B:(10,4).$
■
EXERCISE 3: (Medium)Consider a simple, symmetric random walk starting from 0. What is the chance it visits 2 for
the first time at time 6?
Pictorially, we need to count paths like the second one in the following diagram.
(a) Does not end at $(6,2).$ (b)
OK. (c) Attains 2 before times 6.
Notice that any valid path must pass through $(5,1)$, and
you have no choice about the last segment (it must be upwards). So we are
counting all paths from
$(0,0)$ to $(5,1)$ not
meeting the horizontal line at 2.
The answer may now be obtained easily using the reflection principle.
[Thanks to Mayukh for correcting a typo here.]
The next exercise is an obvious generalisation.
::
EXERCISE 4: (Medium) Let $r,n\in{\mathbb N}$ with $r\leq n$. Consider a simple, symmetric random
walk starting from 0. Then show that
the chance of its visiting
$r$ for the first time
at time $n$ is
$$\frac{N_{n-1,r-1}-N_{n-1,r+1}}{2^n}.$$
[Thanks to Mayukh for correcting a typo here.]
Such a path must pass through $(n-1,r-1)$ and $(n,r).$
Also it must never meet the the line at height $r$ up to and
including time $n-1.$
By reflection principle the path up to time $n-1$ may be
chosen in $N_{n-1,r-1}-N_{n-1,r+1}$ ways. The step from
time $n-1$ to $n$ is forced (it has to move up).
EXERCISE 5: (Medium)What is the conditional probability that a simple, symmetric random walk starting from 0 will end
at (6,2) without ever returning to 0 before that?
Clearly in the second step the path must be at (1,1). So we need to count the number of paths from there to (6,2) without
hitting 0 in between.
Now apply the reflection principle.
::
EXERCISE 6: (Medium)
Given that a simple, symmetric random walk starting from 0 has ended at $(2n,2r),$
what is the conditional probability that it never returned to 0 before that? Assume $1\leq r\leq n$.
Clearly in the second step the path must be at (1,1). So we need to count the number of paths from there to $(2n,2r)$ without
hitting 0 in between.
By the reflection principle, the number of paths from $(1,-1)$ to $(2n,2r)$ hitting 0 in-between is
$N_{2n-1,2r+1}$. Also the total number of paths is $N_{2n-1,2r-1}$.
Hence the answer is $\frac{N_{2n-1,2r-1}-N_{2n-1,2r+1}}{N_{2n,2r}}$.
[Thanks to Mayukh for correcting a typo here.]
EXERCISE 7: (Medium)
Consider all paths of length $2n$ starting
at $(0,0)$. Show that the number of these paths
that never return to $0$ is $N_{2n,0}.$
Such a path must either always be positive. Or always be
negative. Clearly, the number of all-positive paths is the same
as that of all-negative paths.
An all-positive path must visit $(1,1)$ immediately
after $(0,0).$ So enough to compute the number of
all-positive paths starting from $(1,1).$
Where can such a path end? It can end at $2r$ for
some $r\in\{1,...,n\}.$
By the reflection principle,
the total number of all-positive paths from $(1,1)$
to $(2n,2r)$ is
$$|PATH\big((1,1),(2n,2r)\big)|-|PATH\big((1,-1),(2n,2r)\big)|,$$
i.e., $N_{2n-1,2r-1}-N_{2n-1,2r+1}.$
So the total number of all-positive paths is the telescoping sum
$$
(N_{2n-1,1}-N_{2n-1,3}) +
(N_{2n-1,3}-N_{2n-1,5}) + \cdots + (N_{2n-1,2n-1}-N_{2n-1,2n+1})
= N_{2n-1,1}-N_{2n-1,2n+1} = N_{2n-1,1},
$$
since $N_{2n-1,2n+1}=0$ ($\because 2n+1 > 2n-1$).
Combining all-positive and all-negative paths, the total count is
$2N_{2n-1,1} =
2\binom{2n-1}{n}=\frac{2(2n-1)!}{(n-1)!n!} =\frac{(2n!)}{n!n!}
=\binom{2n}{n} = N_{2n,0}.$
Isn't this surprising? The number of $2n$-length paths never returning to 0
equals the number of $2n$-length paths ending at 0. Could you prove it directly by establishing a bijection between
these two sets of paths?
EXERCISE 8: (Medium)
Consider a simple, symmetric random walk of length 11 starting from 0. Given that it has eneded at
1, what is the conditional probability that the maximum position it has visited is 4?
Basically, we need to count paths like the following:
A path from $(0,0)$ to $(11,1)$ with maximum $4$ (i.e., hitting 4 but not 5)
Find the number of paths from (0,0) to (11,1) that meet 4 (may or may not cross it). This is easy to compute using the reflection
principle. The answer is $N_{11,7}.$
Next find similarly
the number of paths from (0,0) to (11,1) that meet 5 (may or may not cross it). The answer is $N_{11,9}.$
The answer is $\frac{N_{11,7}-N_{11,9}}{N_{11,1}}.$
::
EXERCISE 9: (Medium)
How many paths of length 11 are there from $(0,0)$ that have maximum height
$4$?
This is very much like the last problem, except that the final height is not specified. Clearly the final height is something
$\leq 4.$ and $\geq -11.$
Find the number of all such paths with each of these final heights, and add. Don't worry, the sum is telescopic, and a massive
cancellation will save computational labour.
::
EXERCISE 10: (Medium)
Consider all paths of length $n$ starting from $(0,0).$
Let $r\in\{0,...,n\}.$ Then show that
the number of paths with maximum $r$ is $N_{n,r}$
if $n,r$ have the same parity, and $N_{n,r+1}$ else.
We need to find the number of paths with maximum $r.$
Let $A$ be the set of all such paths.
We shall split this set
based on where the path ends. Clearly, it can end somewhere $\leq r.$
Fix any $k\leq r.$
Let $B_k=$set of all $n$-length paths with maximum $r$ and ending at
$k.$
Instead of working with $B_k$'s directly, we prefer to work with
$C=$ the set of all paths with maximum $\geq
r$ and ending at $k$
and
$D=$ the set of all paths with maximum $\geq
r+1$ and ending at $k$
Then we can compute $|C|$ and $|D|$ easily, and also use the fact
that $|B_k| = |C|-|D|.$
Now $|C|=N_{n,2r-k}$ and $|D|=N_{n,2(r+1)-k}= N_{n,2r-k+2}$ by the reflection principle.
So
$$
|B_k|=N_{n,2r-k} - N_{n,2r-k+2}.
$$
We shall now sum this over $k\in\{-n,..., r\}$ to obtain $|A|$:
$$A=\sum_{k=-n}^r (N_{n,2r-k} - N_{n,2r-k+2}).$$
The sum
has a two-step telescoping structure: each negative term
cancels the positive term two steps ahead.
So only the first halves of the first two terms survive, i.e., $N_{n,r}+N_{n,r+1}.$
We know that $N_{a,b}$ is 0 if $a,b$ have opposite
parities. Hence the result.
EXERCISE 11: (Medium)
Consider all paths of length $2n$ starting at $(0,0).$
Prove that the number of these paths that return to $0$ at $2n$
for the first time is $\frac{N_{2n,0}}{2n-1}.$
Since we have no return to 0 before $2n$, the paths are of two types: nonnegative ones and
nonpositive ones. Clearly their numbers are equal. So we shall count only the nonnegative ones
and double the count to get the final answer. Any such path must be at (1,1) after the first step and
be at $(2n-1,1)$ before the last step.
So enough to count paths from (1,1) to $(2n-1,1)$ not hitting 0 inbetween.
Now use the reflection principle.
::
EXERCISE 12: (Medium)
Consider all paths of length $2n$ starting at $(0,0).$
What is the number of these paths that return to $0$ for the first time
at $2r$ for some given $r < n?$ Also, how many of these
return to 0 from the positive side?
EXERCISE 13: (Hard)
Consider all paths of length $2n$ starting at $(0,0).$
Take any $k\in\{1,...,n\}.$ Show that the number of these paths that
return to 0 for last time at $2k$ is $N_{2k,0}\times N_{2n-2k,0}.$
The red dot shows the last 0 hit, which occurs at time $2k.$
We can choose the part before the red dot in $N_{2k,0}$ ways. Also
independently of that, we can choose the part after the red dot
in $N_{2n-2k,0}$ ways, by the conclusion of Exercise 7. Hence the result.
EXERCISE 14: (Medium)
(Ballot problem) two candidates are contesting in
a vote. There are $n$ voters who have cast their votes. The
votes are being counted with the $n$ ballot papers ordered
randomly.
Candidate $A$ has $p$ votes and
candidate $B$ gets $q=n-p (<p)$ votes. Show that the
probability that during the counting $A$ was always leading
is
$$
\frac{p-q}{p+q}.
$$
Let $y_i$ be the lead of $A$ over $B$
after $i$ ballot papers have been counted. If we
plot $y_i$ against $i,$ we shall get a random walk
starting from $(0,0)$ and ending at $(p+q,p-q).$
The total number of outcomes is $N_{p+q,p-q} = {p+q\choose p}
= \frac{(p+q)!}{p!q!}.$
The
favourable oucomes correspond to the paths that always remain
positive after starting from (0,0).
These paths must visit (1,1) after $(0,0).$
Hence #{paths from (0,0) to $(p+q,p-q)$ never returning to 0}
= #{paths from (1,1) to $(p+q,p-q)$ never visiting 0}
= #{paths from (1,1) to $(p+q,p-q)$}
- #{paths from (1,1) to $(p+q,p-q)$ visiting 0}
= #{paths from (1,1) to $(p+q,p-q)$}
- #{paths from (1,1) to $(p+q,q-p)$ visiting 0}
= $N_{p+q-1,p-q-1}-N_{p+q-1,q-p-1}$
= ${p+q-1\choose p-1}- {p+q-1\choose q-1} =
\frac{(p+q-1)!}{p!q!}(p-q).$
So the required probability is $\frac{p-q}{p+q},$ as required.
#{paths from $(0,0)$ to $(n,a)$ that are always $>-b$}
=#{paths from $(0,0)$ to $(n,a)$}-#{paths from $(0,0)$ to $(n,-a-2b)$} by reflection principle
= $N_{n,a}-N_{n,-a-2b}$
= $N_{n,a}-N_{n,a+2b}$ by symmetry.
::
EXERCISE 17: (Medium) Let $b> a> 0.$ Show that the number of paths
from $(0,0)$ to $(n,a)$ that are
always $<b$ is $N_{n,a}-N_{n,2b-a}.$
#{paths from $(0,0)$ to $(n,a)$ that are always $<b$}
=#{paths from $(0,0)$ to $(n,a)$}-#{paths from $(0,0)$ to $(n,2b-a)$} by reflection principle
= $N_{n,a}-N_{n,2b-a}.$
::
EXERCISE 18: (Hard) Show that if $a> c> 0$ and $b>0$, then the number of paths from (0,0) to $(n,c)$
that attain height $a$ and then attain height $-b$ before finishing at $(n,c),$ is $N_{n,2a+2b+c}.$
If the path is at $X_t$ at time $t$ for $t\in\{0,...,n\},$ then we are talking about the set of all those
paths for which $\exists t_1 < t_2 ~~X_{t_1} = a~~X_{t_2}=-b.$
Consider any such path. Let $t_1$ be the first time it hits $a.$ Reflect the path from time $t_1$ to $n$
wrt the horizontal line through $a.$ This gives a path that is bound to hit $2a+b$ and
end at $2a-c.$ Let $t_2$ be the first time it hits $2a+b.$ Reflect the path
again from $t_2$ to $n$ wrt the horizontal line through $2a+b.$ This gives a path that ends at $(n,2a+2b+c).$
::
EXERCISE 19: (Hard) Let $a>c>0$ and $b>0.$ Show that the number of
paths from $(0,0)$ which hit the
horizontal line at height $a$ and then lead to $(n,c)$
without having touched the horizontal line at height $-b$ is
$N_{n,2a-c}-N_{n,2a+2b+c}.$ (Note that the path may touch
the horizontal line at height $-b$ before hitting
the line at height $a.$)
Let $A = $ {paths from $(0,0)$ which hit the
horizontal line at height $a$ and then lead to $(n,c)$ }.
Let $B = ${paths in $A$ that attain height $-b$ after attaining height $a$ }.
Then the answer is $|A|-|B|.$ By reflection principle $|A| = N_{n,2a-c}$ and $|B| = N_{n,2a+2b+c}.$
Hence the result.
How $|B|$ is found by 2 reflections
::
EXERCISE 20: (Hard)Prove that there are as many paths from (0,0)
to $(2n+2,0)$ with all interior vertices $>0$ as there
are paths from (0,0) to $(2n,0)$ where all interior
vertices are $\geq 0.$
Any path from (0,0)
to $(2n+2,0)$ with all interior vertices $>0$ must
visit (1,1) after $(0,0)$, and $(2n+1,1)$
before $(2n+2,0).$
So #{paths from (0,0)
to $(2n+2,0)$ with all interior vertices $>0$}
= #{paths from (1,1)
to $(2n+1,1)$ with all interior vertices $>0$}
= #{paths from (1,0)
to $(2n+1,0)$ with all interior vertices $\geq 0$}
= #{paths from (0,0)
to $(2n,0)$ with all interior vertices $\geq 0$}.
::
EXERCISE 21: (Easy)True or false: The probability that before time $2n$ there occur
exactly $r$ returns to the origin equals the probability
that a return occurs at time $2n$ preceded by at
least $r$ returns.
For $k\in\{1,...,n\},$ the result follows directly from reflection principle. The result fails if $k\leq 0.$
One counterexample, if when $k=-10$ and $n=1.$ The result holds if $k>n,$ because then $P(A)=P(B)=0.$
::
EXERCISE 23: (Medium) Find the fallacy in the following argument:
Consider the set of all paths of length 10 starting
from $(0,0).$
Let $A = $set of paths that never return to 0.
Let $B = $set of paths that never return to 0 at or before time 8.
Now define $C_k$ as the set of all paths
that do not hit 0 at time $2k.$ Then $A = \cap_1^5 C_k$
while $B = \cap_1^4 C_k.$ So $|A|\leq |B|.$
Again, any path that has not hit 0 at or before time 8 can be
continued for two more time units without hitting
0. So $|B| \leq |A|.$
Hence $|A|=|B|.$
Let the total number of balls in either box be $k.$ Let there be $w_i$ white balls in box $i.$ Then the
given condition says
$$\left(\frac{w_1}{k}\right)^n = \left(\frac{w_2}{k}\right)^n + \left(1-\frac{w_2}{k}\right)^n,$$
or
$$w_1^n = w_2^n + \left(k-w_2\right)^n.$$
Since $n\geq 3,$ hence by Fermat's last theorem, there cannot be any nonzero integer solution for this.
So either $w_1 = 0$ or $w_2 = 0$ or $k-w_2 = 0.$ Here $w_1$ cannot be zero, since then the lhs is
zero, while the rhs is positive. If $w_2 = 0$, then the first box has all whites and the second all blacks. If $k-w_2=0,$
then both the boxes has all whites.
::
EXERCISE 25: (Hard) Let $u_{2n}$ denote the probability that a random path
of length $2n$ starting from $(0,0)$ passes
through $(2n,0).$ Also, let $u_0=1.$ Let $v_{2n}$
denote the probability that a random path of length $2n$
starting from $(0,0)$ returns to 0 for the first time
at $2n.$ Then show without using the explicit form
of $u_{2n}$ and $v_{2n}$ that
$$
v_2 u_{2n-2} + \cdots + v_{2n} u_0 = u_{2n}.
$$
